FL300
FL300
Implement

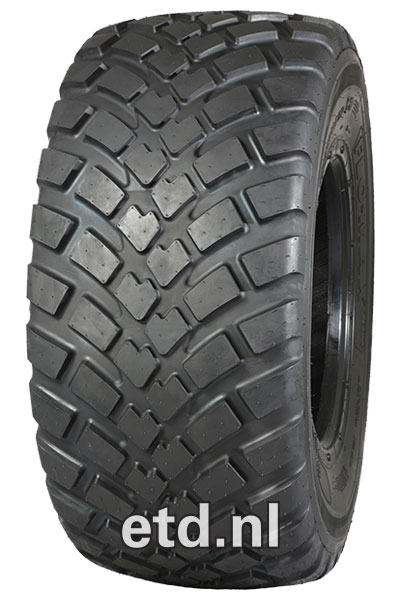

Radial agricultural tyre for trailer use
- Steel Belted
- Wear and puncture resistance

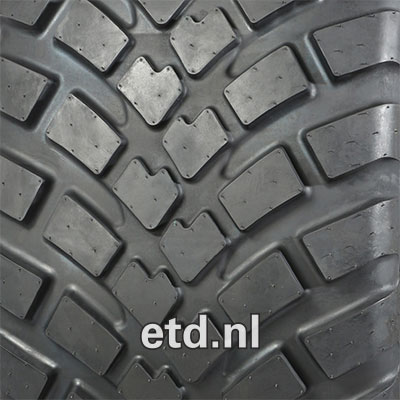

- Excellent grip and self-cleaning performance
Size
Load / speed
Pattern
Category
symbol
500/60R22.5
155D
FL300
AGR
Specifications
Pattern:
FL300
Width:
500
Series:
60
Structure:
R
Inch:
22.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
80
EAN Code:
4260496395493
Technical details
Recommended Rim:
16.00x22.5
Inflation Pressure (bar):
4
Section Width (mm):
503
Outer Diameter (mm):
1172
Rolling Circumference (mm):
3485
Tread Depth (mm):
18
Max load (kg):
3875
Weight (kg):
80.00
Label values
560/60R22.5
165D
FL300
AGR
Specifications
Pattern:
FL300
Width:
560
Series:
60
Structure:
R
Inch:
22.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
80
EAN Code:
4260496395509
Technical details
Recommended Rim:
16.00x22.5
Inflation Pressure (bar):
5
Section Width (mm):
543
Outer Diameter (mm):
1244
Rolling Circumference (mm):
3678
Tread Depth (mm):
18
Max load (kg):
5150
Weight (kg):
94.00
Label values
560/45R22.5
152D
FL300
AGR
Specifications
Pattern:
FL300
Width:
560
Series:
45
Structure:
R
Inch:
22.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
108
EAN Code:
4260496395486
Technical details
Recommended Rim:
16.00x22.5
Inflation Pressure (bar):
4
Section Width (mm):
543
Outer Diameter (mm):
1076
Rolling Circumference (mm):
3195
Tread Depth (mm):
18
Max load (kg):
3550
Weight (kg):
82.00
Label values
710/50R30.5
173D
FL300
AGR
Specifications
Pattern:
FL300
Width:
710
Series:
50
Structure:
R
Inch:
30.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
25
EAN Code:
4260639823982
Technical details
Recommended Rim:
AG20.00
Inflation Pressure (bar):
4
Section Width (mm):
727
Outer Diameter (mm):
1485
Rolling Circumference (mm):
4509
Tread Depth (mm):
26
Max load (kg):
8840
Weight (kg):
193.80
Label values
600/55R26.5
165D
FL300
AGR
Specifications
Pattern:
FL300
Width:
600
Series:
55
Structure:
R
Inch:
26.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
40HC:
63
EAN Code:
4260639824279
Technical details
Recommended Rim:
AG20.00
Inflation Pressure (bar):
4.0
Outer Diameter (mm):
1333
Rolling Circumference (mm):
4066
Tread Depth (mm):
20
Max load (kg):
7005
Weight (kg):
143.00
Label values
Rolling resistance:
650/55R26.5
169D
FL300
AGR
Specifications
Pattern:
FL300
Width:
650
Series:
55
Structure:
R
Inch:
26.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
40HC:
55
EAN Code:
4260639824286
Technical details
Recommended Rim:
AG20.00
Inflation Pressure (bar):
4
Section Width (mm):
645
Outer Diameter (mm):
1389
Rolling Circumference (mm):
4234
Tread Depth (mm):
24
Max load (kg):
6615
Weight (kg):
155.00
Label values
Rolling resistance:
710/50R26.5
170D
FL300
AGR
Specifications
Pattern:
FL300
Width:
710
Series:
50
Structure:
R
Inch:
26.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
49
EAN Code:
4260639824293
Technical details
Recommended Rim:
DW20B
Inflation Pressure (bar):
4
Section Width (mm):
727
Outer Diameter (mm):
1383
Rolling Circumference (mm):
4218
Tread Depth (mm):
24
Max load (kg):
8160
Weight (kg):
172.00
Label values
500/45R22.5
146D
FL300
AGR
Specifications
Pattern:
FL300
Width:
500
Series:
45
Structure:
R
Inch:
22.5
Speed index:
D
Specification:
Flo-Max - SB
TT/TL:
TL
Set:
0
40HC:
92
EAN Code:
4260639828567
Technical details
Recommended Rim:
AG16.00
Inflation Pressure (bar):
4
Outer Diameter (mm):
1022
Tread Depth (mm):
21
Weight (kg):
80.00
Label values
Rolling resistance:
