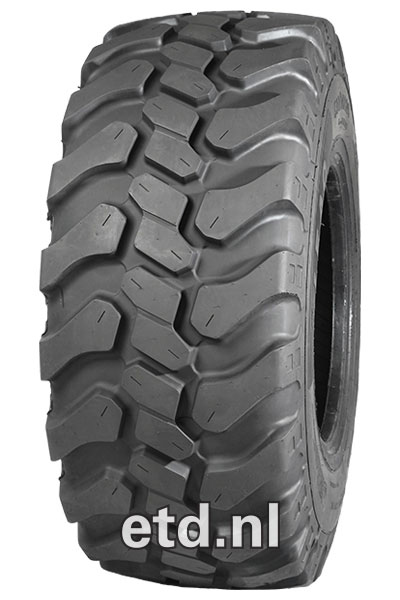

LR400
LR400
Industrial Tractor
Radial Agricultural Tyre
- Increased traction performance
- Cut resistant due to enhanced shoulder design
- Excellent tread wear


Size
Load / speed

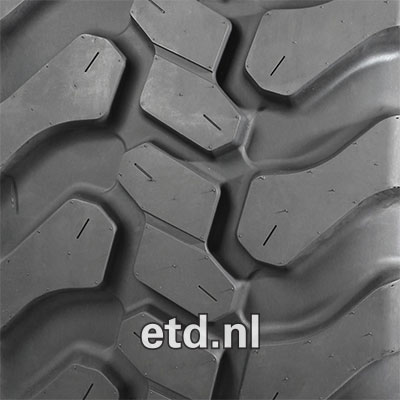

Pattern
Category
symbol
500/70R24
164B
LR400
AGR
Specifications
Pattern:
LR400
Width:
500
Series:
70
Structure:
R
Inch:
24
Speed index:
B
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
74
EAN Code:
4260496396063
Technical details
Recommended Rim:
DW16
Inflation Pressure (bar):
4
Outer Diameter (mm):
1308
Rolling Circumference (mm):
3899
Tread Depth (mm):
24
Max load (kg):
5000
Weight (kg):
107.40
Label values
405/70R18
141B
LR400
AGR
Specifications
Pattern:
LR400
Width:
405
Series:
70
Structure:
R
Inch:
18
Speed index:
B
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
168
EAN Code:
4260496398654
Technical details
Recommended Rim:
11 12 13
Inflation Pressure (bar):
3.8
Outer Diameter (mm):
1025
Rolling Circumference (mm):
3124
Tread Depth (mm):
20
Max load (kg):
2575
Weight (kg):
65.00
Label values
TyreClass:
C3
405/70R18
156B
LR400
AGR
Specifications
Pattern:
LR400
Width:
405
Series:
70
Structure:
R
Inch:
18
Speed index:
B
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
168
EAN Code:
4260496398661
Technical details
Recommended Rim:
11 12 13
Inflation Pressure (bar):
6.5
Outer Diameter (mm):
1025
Rolling Circumference (mm):
3124
Tread Depth (mm):
20
Max load (kg):
4000
Weight (kg):
68.00
Label values
TyreClass:
C3
405/70R20
143B
LR400
AGR
Specifications
Pattern:
LR400
Width:
405
Series:
70
Structure:
R
Inch:
20
Speed index:
B
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
154
EAN Code:
4260496398678
Technical details
Recommended Rim:
11 12 13 14
Inflation Pressure (bar):
3.8
Outer Diameter (mm):
1075
Rolling Circumference (mm):
3279
Tread Depth (mm):
20
Max load (kg):
2725
Weight (kg):
70.00
Label values
TyreClass:
C3
400/70R18
147A8
LR400
AGR
Specifications
Pattern:
LR400
Width:
400
Series:
70
Structure:
R
Inch:
18
Speed index:
A8
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
168
EAN Code:
4260639827256
Technical details
Recommended Rim:
13
Inflation Pressure (bar):
4
Section Width (mm):
404
Outer Diameter (mm):
1017
Tread Depth (mm):
23
Max load (kg):
3075
Weight (kg):
65.00
Label values
405/70R20
149A8
LR400
AGR
Specifications
Pattern:
LR400
Width:
400
Series:
70
Structure:
R
Inch:
20
Speed index:
A8
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
154
EAN Code:
4260639827263
Technical details
Recommended Rim:
13.00
Inflation Pressure (bar):
4
Section Width (mm):
404
Outer Diameter (mm):
1068
Tread Depth (mm):
23
Max load (kg):
3250
Weight (kg):
70.00
Label values
TyreClass:
C3
400/70R20
149A8
LR400
AGR
Specifications
Pattern:
LR400
Width:
400
Series:
70
Structure:
R
Inch:
20
Speed index:
A8
Specification:
Strong-Max
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
154
EAN Code:
4260639827263
Technical details
Recommended Rim:
13.00
Inflation Pressure (bar):
4
Section Width (mm):
404
Outer Diameter (mm):
1068
Tread Depth (mm):
23
Max load (kg):
3250
Weight (kg):
70.00
Label values
TyreClass:
C3
