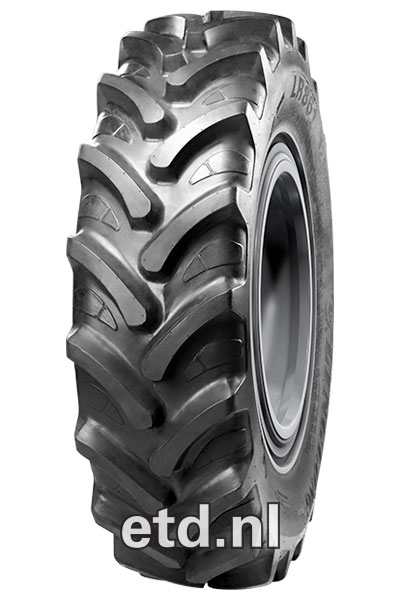

LR861
LR861

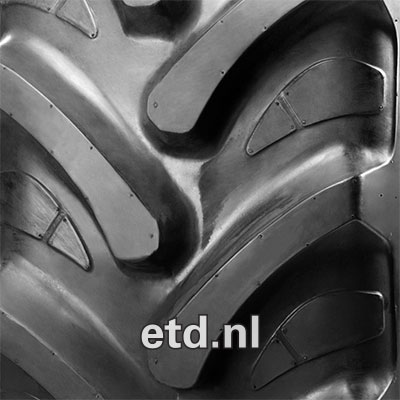

R-1W Tractor / Row Crop
Tractor Radial Agricultural Tyre
- Good traction and braking performance
- Saves worktime and fuel
- Excellent stability and comfort
- Suitable for modern mechinical equipment
Size
Load / speed
Pattern
Category
symbol
280/85R24
115A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
280
Series:
85
Structure:
R
Inch:
24
Speed index:
A8
Specification:
11.2R24
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
242
EAN Code:
4260399940998
Technical details
Recommended Rim:
w9 w10
Inflation Pressure (bar):
1.6
Section Width (mm):
282
Outer Diameter (mm):
1086
Rolling Circumference (mm):
3242
Tread Depth (mm):
39
Max load (kg):
1215
Weight (kg):
42.10
Label values
TyreClass:
C3
Lug quanity:
19x2
320/85R24
122A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
85
Structure:
R
Inch:
24
Speed index:
A8
Specification:
12.4R24
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
184
EAN Code:
4260399941001
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
1.6
Section Width (mm):
319
Outer Diameter (mm):
1154
Rolling Circumference (mm):
3446
Tread Depth (mm):
41
Max load (kg):
1500
Weight (kg):
52.60
Label values
TyreClass:
C3
Lug quanity:
19x2
380/85R24
131A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
85
Structure:
R
Inch:
24
Speed index:
A8
Specification:
14.9R24
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
136
EAN Code:
4260399941018
Technical details
Recommended Rim:
w11 w12 w13
Inflation Pressure (bar):
1.6
Section Width (mm):
380
Outer Diameter (mm):
1256
Rolling Circumference (mm):
3746
Tread Depth (mm):
45
Max load (kg):
1950
Weight (kg):
70.70
Label values
TyreClass:
C3
Lug quanity:
19x2
420/85R28
139A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
85
Structure:
R
Inch:
28
Speed index:
A8
Specification:
16.9R28
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
90
EAN Code:
4260399941025
Technical details
Recommended Rim:
w13 w14l w15l
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1425
Rolling Circumference (mm):
4251
Tread Depth (mm):
48
Max load (kg):
2430
Weight (kg):
95.20
Label values
TyreClass:
C3
Lug quanity:
20x2
420/85R30
137B
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
85
Structure:
R
Inch:
30
Speed index:
A8
Specification:
16.9R30
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
74
EAN Code:
4260399941032
Technical details
Recommended Rim:
w13 w14l w15l
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1476
Rolling Circumference (mm):
4415
Tread Depth (mm):
48
Max load (kg):
2500
Weight (kg):
99.40
Label values
TyreClass:
C3
Lug quanity:
20x2
460/85R30
145A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
460
Series:
85
Structure:
R
Inch:
30
Speed index:
A8
Specification:
18.4R30
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
58
EAN Code:
4260399941049
Technical details
Recommended Rim:
w14l w15l w16l
Inflation Pressure (bar):
1.6
Section Width (mm):
455
Outer Diameter (mm):
1544
Rolling Circumference (mm):
4631
Tread Depth (mm):
51
Max load (kg):
2900
Weight (kg):
114.60
Label values
TyreClass:
C3
Lug quanity:
20x2
320/85R28
124A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
85
Structure:
R
Inch:
28
Speed index:
A8
Specification:
12.4R28
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
140
EAN Code:
4260399941056
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
1.6
Section Width (mm):
319
Outer Diameter (mm):
1255
Rolling Circumference (mm):
3748
Tread Depth (mm):
41
Max load (kg):
1600
Weight (kg):
57.10
Label values
TyreClass:
C3
Lug quanity:
20x2
380/85R28
133A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
85
Structure:
R
Inch:
28
Speed index:
A8
Specification:
14.9R28
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
104
EAN Code:
4260399941063
Technical details
Recommended Rim:
w11 w12 w13
Inflation Pressure (bar):
1.6
Section Width (mm):
380
Outer Diameter (mm):
1357
Rolling Circumference (mm):
4053
Tread Depth (mm):
45
Max load (kg):
2060
Weight (kg):
78.70
Label values
TyreClass:
C3
Lug quanity:
20x2
420/85R24
137A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
85
Structure:
R
Inch:
24
Speed index:
A8
Specification:
16.9R24
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
90
EAN Code:
4260399941070
Technical details
Recommended Rim:
w13 w14L w15l
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1324
Rolling Circumference (mm):
3947
Tread Depth (mm):
48
Max load (kg):
2300
Weight (kg):
86.20
Label values
TyreClass:
C3
Lug quanity:
19x2
460/85R34
147A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
460
Series:
85
Structure:
R
Inch:
34
Speed index:
A8
Specification:
18.4R34
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
56
EAN Code:
4260399941087
Technical details
Recommended Rim:
w14l w15l w16l
Inflation Pressure (bar):
1.6
Section Width (mm):
455
Outer Diameter (mm):
1646
Rolling Circumference (mm):
4932
Tread Depth (mm):
51
Max load (kg):
3075
Weight (kg):
125.90
Label values
TyreClass:
C3
Lug quanity:
21x2
460/85R38
149A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
460
Series:
85
Structure:
R
Inch:
38
Speed index:
A8
Specification:
18.4R38
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
49
EAN Code:
4260399941094
Technical details
Recommended Rim:
w14l w15l w16l
Inflation Pressure (bar):
1.6
Section Width (mm):
455
Outer Diameter (mm):
1747
Rolling Circumference (mm):
5244
Tread Depth (mm):
51
Max load (kg):
3250
Weight (kg):
135.80
Label values
TyreClass:
C3
Lug quanity:
22x2
420/85R34
142A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
85
Structure:
R
Inch:
34
Speed index:
A8
Specification:
16.9R34
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
64
EAN Code:
4260399941100
Technical details
Recommended Rim:
w13 w14l w15l
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1578
Rolling Circumference (mm):
4729
Tread Depth (mm):
48
Max load (kg):
2650
Weight (kg):
110.30
Label values
TyreClass:
C3
Lug quanity:
21x2
420/85R38
144A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
85
Structure:
R
Inch:
38
Speed index:
A8
Specification:
16.9R38
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
50
EAN Code:
4260399941117
Technical details
Recommended Rim:
w13 w14l w15l
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1679
Rolling Circumference (mm):
5037
Tread Depth (mm):
48
Max load (kg):
2800
Weight (kg):
118.10
Label values
TyreClass:
C3
Lug quanity:
22x2
340/85R24
125A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
340
Series:
85
Structure:
R
Inch:
24
Speed index:
A8
Specification:
13.6R24
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
160
EAN Code:
4260399941124
Technical details
Recommended Rim:
w11 w12
Inflation Pressure (bar):
1.6
Section Width (mm):
343
Outer Diameter (mm):
1188
Rolling Circumference (mm):
3555
Tread Depth (mm):
42
Max load (kg):
1650
Weight (kg):
58.80
Label values
TyreClass:
C3
Lug quanity:
19x2
340/85R28
127A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
340
Series:
85
Structure:
R
Inch:
28
Speed index:
A8
Specification:
13.6R28
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
138
EAN Code:
4260399941131
Technical details
Recommended Rim:
w11 w12
Inflation Pressure (bar):
1.6
Section Width (mm):
343
Outer Diameter (mm):
1289
Rolling Circumference (mm):
3851
Tread Depth (mm):
42
Max load (kg):
1750
Weight (kg):
64.20
Label values
TyreClass:
C3
Lug quanity:
20x2
380/85R30
135A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
85
Structure:
R
Inch:
30
Speed index:
A8
Specification:
14.9R30
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
90
EAN Code:
4260399941148
Technical details
Recommended Rim:
w11 w12 w13
Inflation Pressure (bar):
1.6
Section Width (mm):
380
Outer Diameter (mm):
1408
Rolling Circumference (mm):
4199
Tread Depth (mm):
45
Max load (kg):
2180
Weight (kg):
84.00
Label values
TyreClass:
C3
Lug quanity:
20x2
520/85R38
155A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
520
Series:
85
Structure:
R
Inch:
38
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
42
EAN Code:
4260399941155
Technical details
Recommended Rim:
dw16l dw18l
Inflation Pressure (bar):
1.6
Section Width (mm):
516
Outer Diameter (mm):
1849
Rolling Circumference (mm):
5533
Tread Depth (mm):
54
Max load (kg):
3875
Weight (kg):
175.10
Label values
TyreClass:
C3
Lug quanity:
22x2
520/85R42
157A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
520
Series:
85
Structure:
R
Inch:
42
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
36
EAN Code:
4260399941162
Technical details
Recommended Rim:
dw16l dw18l
Inflation Pressure (bar):
1.6
Section Width (mm):
516
Outer Diameter (mm):
1951
Rolling Circumference (mm):
5868
Tread Depth (mm):
54
Max load (kg):
4125
Weight (kg):
194.90
Label values
TyreClass:
C3
Lug quanity:
23x2
480/80R46
158A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
480
Series:
80
Structure:
R
Inch:
46
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
37
EAN Code:
4260399941179
Technical details
Recommended Rim:
dd16l dw16l w16l dw16a w16a
Inflation Pressure (bar):
2.4
Section Width (mm):
479
Outer Diameter (mm):
1936
Rolling Circumference (mm):
5846
Tread Depth (mm):
49
Max load (kg):
3550
Weight (kg):
177.30
Label values
TyreClass:
C3
Lug quanity:
23x2
480/80R42
156A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
480
Series:
80
Structure:
R
Inch:
42
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
37
EAN Code:
4260399941186
Technical details
Recommended Rim:
dd16l dw16l w16l dw16a w16a
Inflation Pressure (bar):
1.6
Section Width (mm):
455
Outer Diameter (mm):
1835
Rolling Circumference (mm):
5572
Tread Depth (mm):
49
Max load (kg):
4000
Weight (kg):
166.30
Label values
TyreClass:
C3
Lug quanity:
22x2
380/85R34
137A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
85
Structure:
R
Inch:
34
Speed index:
A8
Specification:
14.9R34
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
72
EAN Code:
4260399941193
Technical details
Recommended Rim:
w11 w12 w13
Inflation Pressure (bar):
1.6
Section Width (mm):
380
Outer Diameter (mm):
1510
Rolling Circumference (mm):
4518
Tread Depth (mm):
45
Max load (kg):
2300
Weight (kg):
95.20
Label values
TyreClass:
C3
Lug quanity:
21x2
340/85R38
133A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
340
Series:
85
Structure:
R
Inch:
38
Speed index:
A8
Specification:
13.6R38
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
73
EAN Code:
4260399941230
Technical details
Recommended Rim:
w11 w12
Inflation Pressure (bar):
1.6
Section Width (mm):
343
Outer Diameter (mm):
1543
Rolling Circumference (mm):
4666
Tread Depth (mm):
42
Max load (kg):
2060
Weight (kg):
79.10
Label values
TyreClass:
C3
Lug quanity:
22x2
320/85R32
126A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
85
Structure:
R
Inch:
32
Speed index:
A8
Specification:
12.4R32
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
126
EAN Code:
4260399944187
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
1.6
Section Width (mm):
319
Outer Diameter (mm):
606
Rolling Circumference (mm):
4061
Tread Depth (mm):
41
Weight (kg):
65.20
Label values
TyreClass:
C3
Lug quanity:
21x2
380/90R46
157A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
90
Structure:
R
Inch:
46
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
50
EAN Code:
4260399945146
Technical details
Recommended Rim:
w11 w12 w13
Inflation Pressure (bar):
3.6
Section Width (mm):
380
Outer Diameter (mm):
1852
Rolling Circumference (mm):
5609
Tread Depth (mm):
45
Max load (kg):
4125
Weight (kg):
133.80
Label values
TyreClass:
C3
Lug quanity:
25x2
320/85R36
128A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
85
Structure:
R
Inch:
36
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
86
EAN Code:
4260399945160
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
1.6
Section Width (mm):
319
Outer Diameter (mm):
1458
Rolling Circumference (mm):
4376
Tread Depth (mm):
41
Max load (kg):
1800
Weight (kg):
70.70
Label values
TyreClass:
C3
Lug quanity:
22x2
320/90R46
146A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
90
Structure:
R
Inch:
46
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
76
EAN Code:
4260399945177
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
3.2
Section Width (mm):
319
Outer Diameter (mm):
1744
Rolling Circumference (mm):
5234
Tread Depth (mm):
37
Max load (kg):
3000
Weight (kg):
92.80
Label values
TyreClass:
C3
Lug quanity:
33x2
320/85R32
142A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
85
Structure:
R
Inch:
32
Speed index:
A8
Specification:
12.4R32
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
126
EAN Code:
4260399946242
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
4
Section Width (mm):
319
Outer Diameter (mm):
611
Rolling Circumference (mm):
4061
Tread Depth (mm):
41
Weight (kg):
65.20
Label values
TyreClass:
C3
Lug quanity:
21x2
420/90R30
142A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
90
Structure:
R
Inch:
30
Speed index:
A8
Specification:
(16.9R30)
TT/TL:
TL
Set:
0
40HC:
67
EAN Code:
4260639823692
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
1.6
Section Width (mm):
418
Outer Diameter (mm):
1518
Rolling Circumference (mm):
4556
Max load (kg):
2650
Weight (kg):
108.00
Label values
420/90R30
142A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
420
Series:
90
Structure:
R
Inch:
30
Speed index:
A8
Specification:
(16.9R30)
TT/TL:
TL
Set:
0
40HC:
67
EAN Code:
4260639823708
Technical details
Recommended Rim:
W13
Inflation Pressure (bar):
2.4
Section Width (mm):
418
Outer Diameter (mm):
1518
Rolling Circumference (mm):
4556
Tread Depth (mm):
48
Max load (kg):
3075
Weight (kg):
108.00
Label values
340/85R36
132A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
340
Series:
85
Structure:
R
Inch:
36
Speed index:
A8
Specification:
13.6R38
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
80
EAN Code:
4260639825788
Technical details
Recommended Rim:
W12
Inflation Pressure (bar):
1.6
Section Width (mm):
343
Outer Diameter (mm):
1492
Tread Depth (mm):
42
Weight (kg):
79.10
Label values
TyreClass:
C3
320/90R46
148A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
320
Series:
90
Structure:
R
Inch:
46
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
76
EAN Code:
4260639825832
Technical details
Recommended Rim:
w9 w10 w11
Inflation Pressure (bar):
3.2
Section Width (mm):
319
Outer Diameter (mm):
1744
Rolling Circumference (mm):
5234
Tread Depth (mm):
37
Max load (kg):
3000
Weight (kg):
92.80
Label values
TyreClass:
C3
Lug quanity:
33x2
380/90R46
149A8
LR861
AGR
Specifications
Pattern:
LR861
Width:
380
Series:
90
Structure:
R
Inch:
46
Speed index:
A8
TT/TL:
TL
Set:
0
Application:
n/a
40HC:
50
EAN Code:
4260639826167
Technical details
Recommended Rim:
w11 w12 w13
Section Width (mm):
380
Outer Diameter (mm):
1852
Rolling Circumference (mm):
5609
Tread Depth (mm):
45
Weight (kg):
133.80
Label values
TyreClass:
C3
Lug quanity:
25x2
