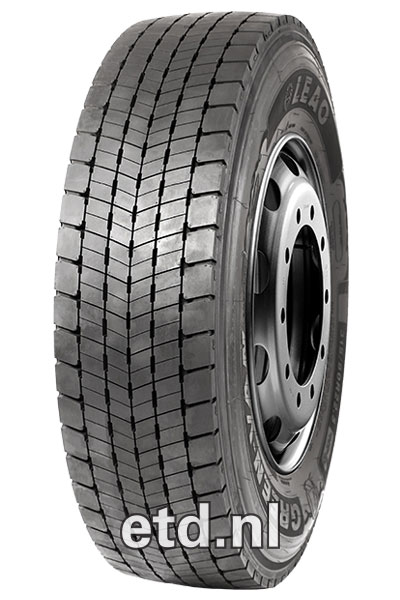

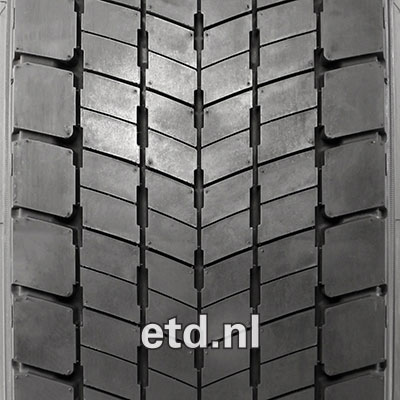

ETD100
Long Haul Drive
Suitable for drive axle on trucks driving with high speed on highways
Low rolling resistance, reducing fuel consumption
Lasting grip and stability by hidden groove design
M+S and 3PMSF marking
Excellent mileage for long distance transportation
3PMSF
Go to webshop
Size
Load / speed
Pattern
Brand
Category
Symbol
315/80R22.5
156/150L
ETD100
Leao
TBR
Specifications
Pattern:
ETD100
Width:
315
Series:
80
Structure:
R
Inch:
22.5
Ply Rating:
20PR
Load index:
156/150
Speed index:
L
Load / Speed 2:
154/150M
TL/TT:
TL
Application:
Long Haul
Position:
40HC:
217
EAN Code:
4260496397763
Factory code:
211011780
Technical details
Recommended Rim:
9.00x22.5
Inflation Pressure (bar):
8.5
Outer Diameter (mm):
1076
Static Load Radius (mm):
500
Rolling Circumference (mm):
3282
Tread Depth (mm):
17
Load (kg) @ Speed (km/h):
4000
Weight (kg):
68.50
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
C ( dB)
Label code:
466542
Download
315/70R22.5
156/150L
ETD100
Leao
TBR
Specifications
Pattern:
ETD100
Width:
315
Series:
70
Structure:
R
Inch:
22.5
Ply Rating:
18PR
Load index:
156/150
Speed index:
L
Load / Speed 2:
154/150M
TL/TT:
TL
Application:
Long Haul
Position:
40HC:
260
EAN Code:
4260496397749
Factory code:
211011902
Technical details
Recommended Rim:
9.00x22.5
Inflation Pressure (bar):
9
shop_label_sectionwidth:
312
Outer Diameter (mm):
1014
Static Load Radius (mm):
468
Rolling Circumference (mm):
3093
Tread Depth (mm):
16.5
Load (kg) @ Speed (km/h):
4000
Weight (kg):
65.00
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
C ( dB)
Label code:
466534
Download
315/60R22.5
152/148L
ETD100
Leao
TBR
Specifications
Pattern:
ETD100
Width:
315
Series:
60
Structure:
R
Inch:
22.5
Ply Rating:
16PR
Load index:
152/148
Speed index:
L
TL/TT:
TL
Application:
Long Haul
Position:
40HC:
270
EAN Code:
4260496396971
Factory code:
211016782
Technical details
Recommended Rim:
9.75x22.5
Inflation Pressure (bar):
9
Outer Diameter (mm):
950
Static Load Radius (mm):
445
Rolling Circumference (mm):
2878
Tread Depth (mm):
16.5
Load (kg) @ Speed (km/h):
3550
Weight (kg):
62.10
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
C ( dB)
Label code:
466522
Download
295/60R22.5
150/147L
ETD100
Leao
TBR
Specifications
Pattern:
ETD100
Width:
295
Series:
60
Structure:
R
Inch:
22.5
Ply Rating:
16PR
Load index:
150/147
Speed index:
L
TL/TT:
TL
Application:
Long Haul
Position:
40HC:
324
EAN Code:
4260496396919
Factory code:
211012194
Technical details
Recommended Rim:
9.00x22.5
Inflation Pressure (bar):
9
shop_label_sectionwidth:
292
Outer Diameter (mm):
926
Static Load Radius (mm):
435
Rolling Circumference (mm):
2806
Tread Depth (mm):
16
Load (kg) @ Speed (km/h):
3250
Weight (kg):
64.30
Label values
Rolling resistance:
D
Wet / grip:
C
Sound:
C ( dB)
Label code:
466511
Download
